Doubt about simulation results of the moisture mass

[salthothumid]

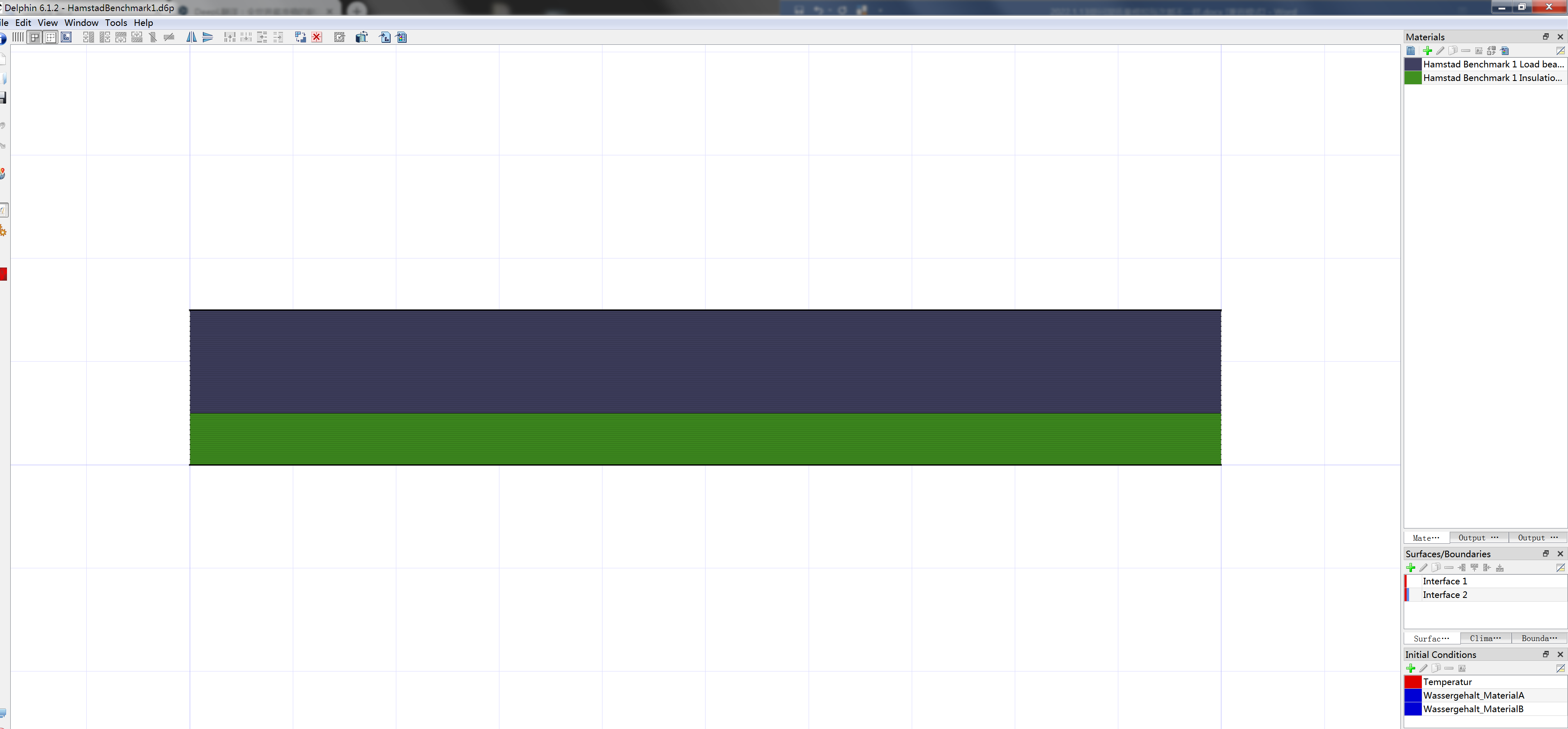

I used Delphin6 Examples files (HamstadBenchmark1) for simulation.

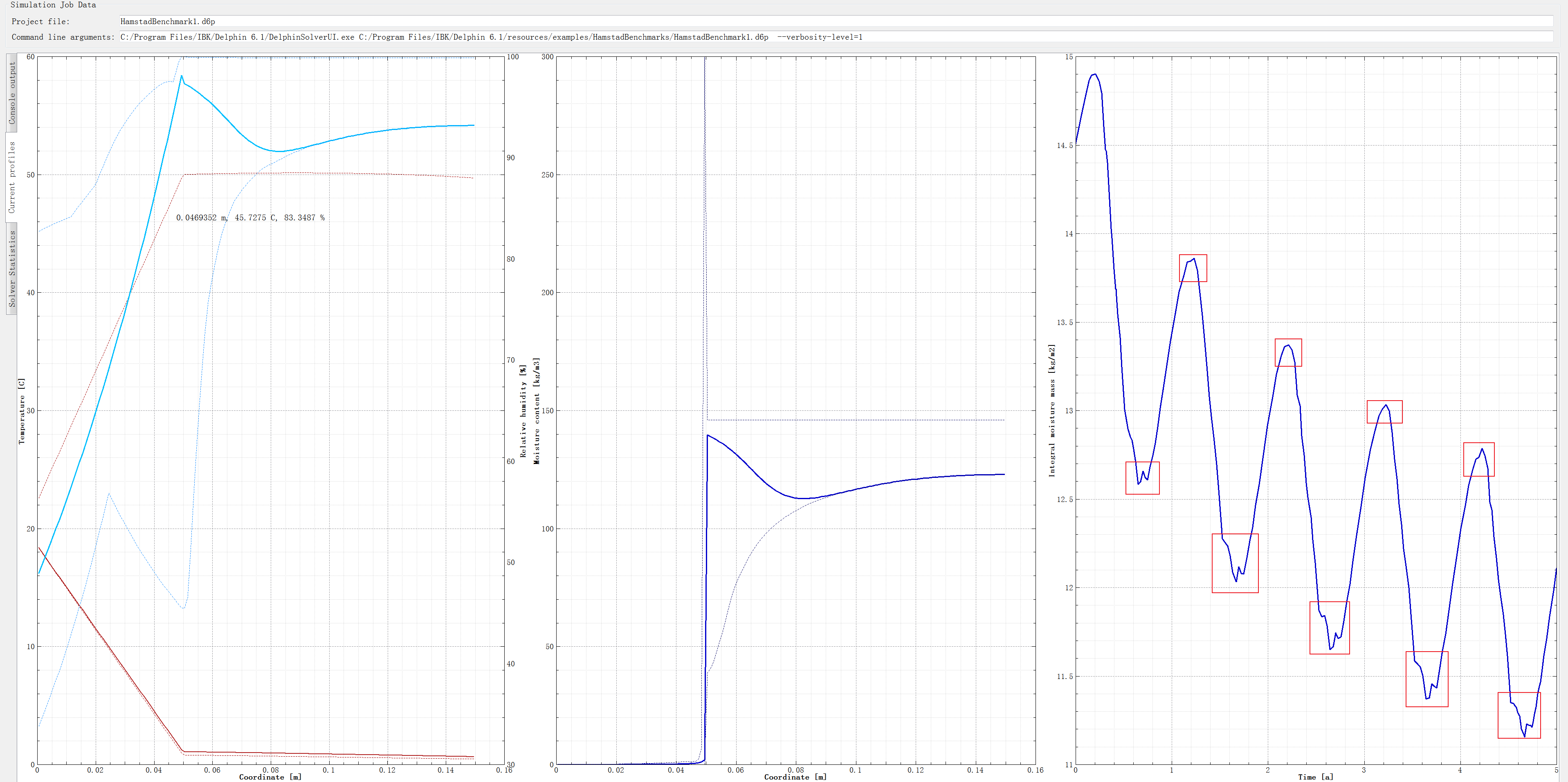

Firstly, I found that the simulation results of the moisture mass are not the same, For example, annual peaks and troughs. Theoretically, the climate conditions settings are the same every year, Why do the peaks and troughs have different patterns from year to year?


[salthothumid]

Second, I simulated Delphin6 Examples files (HamstadBenchmark1) three times and found that the results of the moisture mass were not exactly the same.




[fechner]

Hello,

The graphical output from the UI solver don't use the output time steps. It makes outputs at convenient times. It is more an overview than an exact output.
Please use for output evaluation the PostProc 2. Please do it and have another look
